Name: Acorn 3-1/2 Inch x 3-1/2 Inch Butt Hinge - H.N. Williams
SKU: AC-TJ4BP
Price: 33.00 USD
Availability: InStock

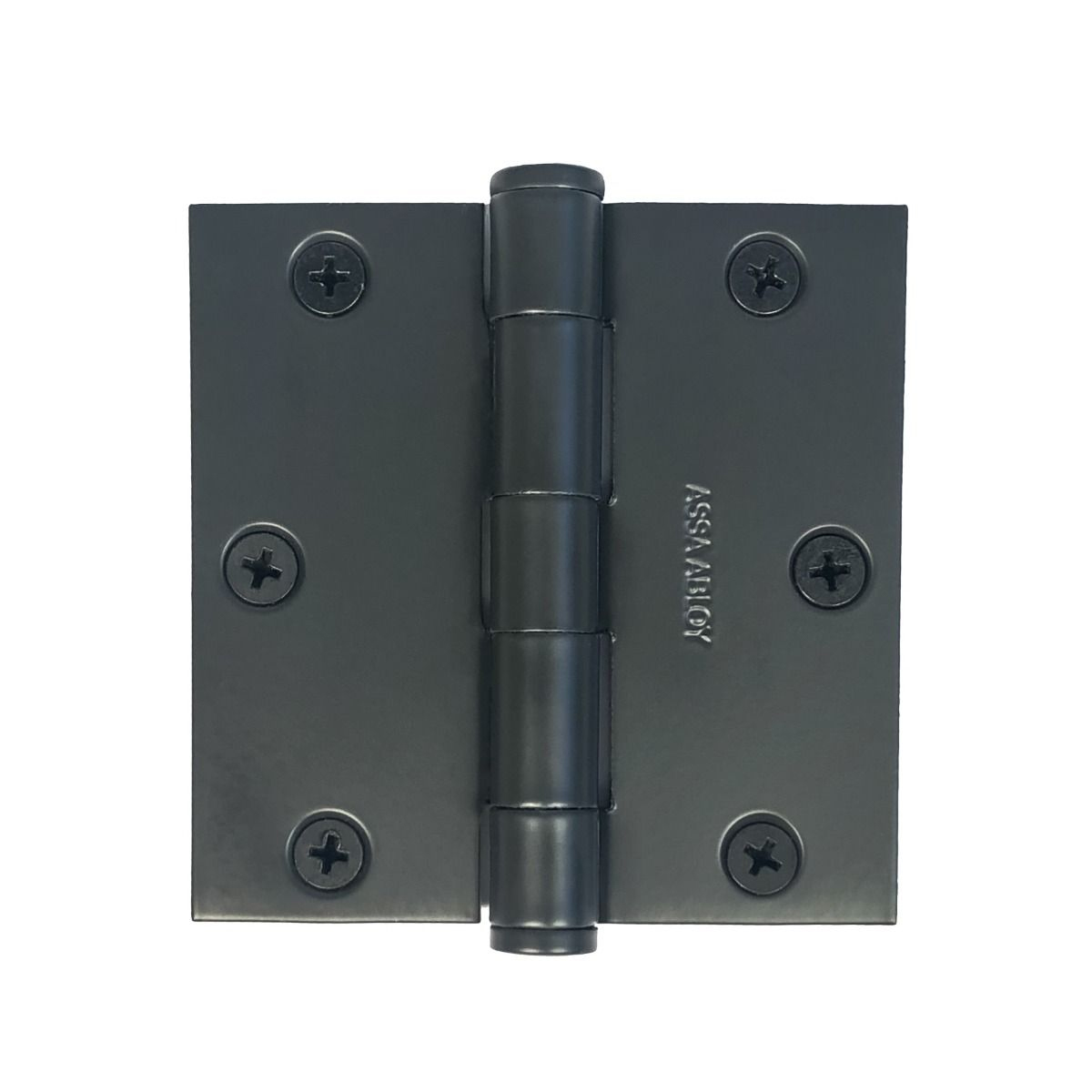

Acorn 3-1/2 Inch x 3-1/2 Inch Butt Hinge

$33.00

Acorn 3-1/2 Inch x 3-1/2 Inch Butt Hinge. Accent your doors with a high quality and long-lasting full mortise butt hinge. Painted in matte black it will match the rest of your door hardware from Acorn. Sold as a single hinge, screws included. 3-1/2” x 3-1/2”

In stock

Acorn 3-1/2 Inch x 3-1/2 Inch Butt Hinge

Accent your doors with a high quality and long-lasting full mortise butt hinge. Painted in matte black it will match the rest of your door hardware from Acorn. Sold as a single hinge, screws included. 3-1/2” x 3-1/2”

DESCRIPTION

TJ4BP – 3-1/2″x 3-1/2″ Square Corner Mortise Butt Hinge

The TJ4BP is made from cold-rolled steel for added strength with five knuckes for ease of use and length of life. Made with a flush pin for a finished look, finished in Acorn matte black to match the rest of door hardware.

Made of Steel with a Matte Black finish
3-1/2″ tall x 3-1/2″ wide (open)
Sold as Single Hinge
Residential Strength
Full mortise design
Removable Pin
6, 1″ x #8 flat head screws included
Square Corners
For doors
5 knuckles
Arc Hole Pattern
Made in the USA

INSTALLATION

Installation Tips

Mounting: These have traditional standard square corners for mortised door butt hinges. It is recommended that three hinges be used on doors up to and including 90″ with one additional hinge for each additional 30″
Make sure you check your current hinges before making a purchase.

General Hinge Size Selection

Thickness of Door	Width of Door	Hinge Size to Use
1-1/4″	28″ to 32″	3″ Hinge
1-3/8″	Up to 32″	3-1/2″ Hinge
1-3/8″	32″ to 36″	4″ Hinge
1-3/4″	Up to 36″	4-1/2″ Hinge
1-3/4″	36″ to 48″	5″ Hinge
2″ to 2-1/2″	Up to 42″	5″ Heavy Duty Commercial
